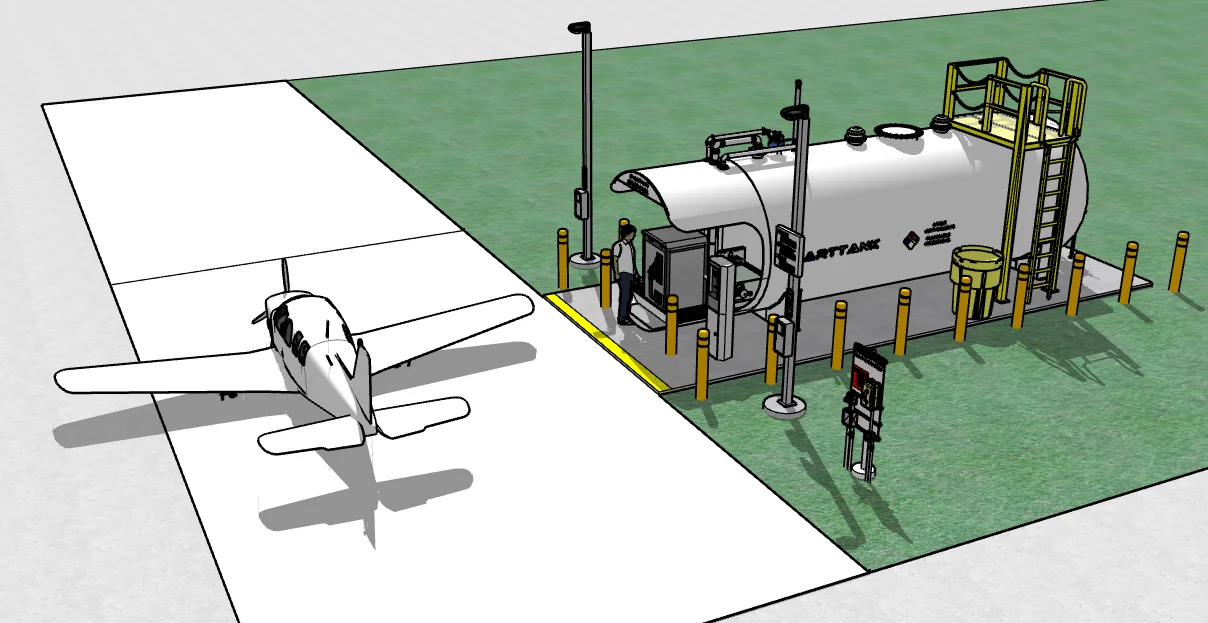

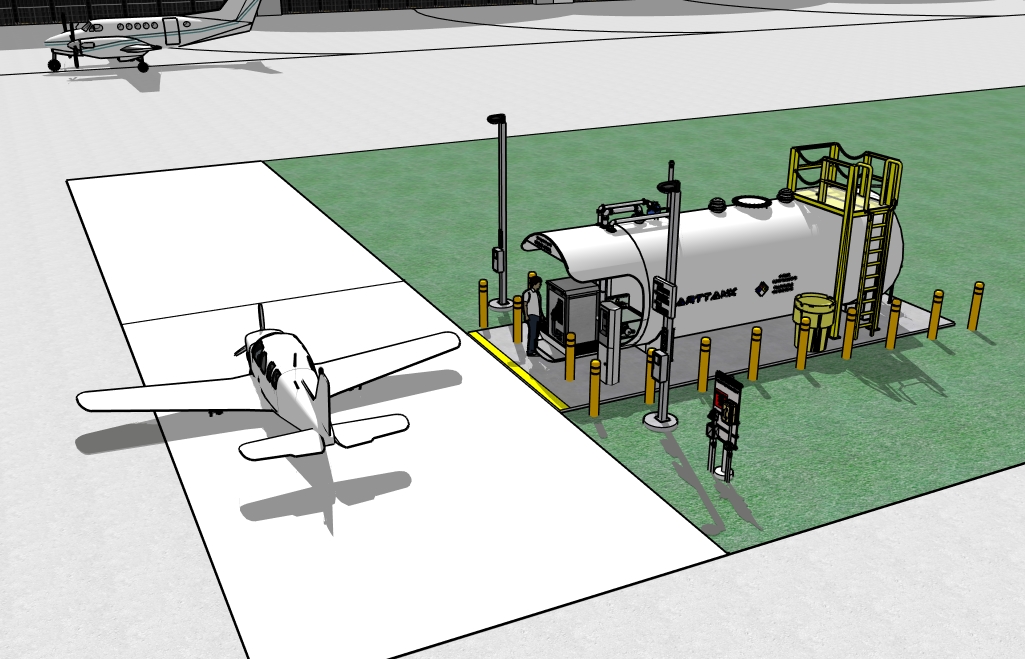

Full Retail Avgas System

UL 142 Flameshield

Standard double-wall steel construction with interstitial monitoring. Suitable for most applications where fire-rated setback distances can be maintained.

UL 2085 Fireguard

Fire-protected tank with 2-hour fire rating. Allows reduced setback distances from buildings, property lines, and dispensing areas.

• 2-hour fire rating (2000°F)
• Lightweight thermal insulation
• Reduced setback requirements
• Ballistic and vehicle impact resistant

Features

Heavy-duty spring rewind reel with aviation-certified fuel hose. Provides extended reach for fueling aircraft on the ramp with automatic retraction.

• Aviation certified fuel hose
• Spring rewind mechanism
• Adjustable tension
• Swivel joint prevents kinking
• Powder coated steel construction

Application

The OPW 295-SA is the standard overwing fueling nozzle for general aviation aircraft. The spout is sized to fit aircraft filler necks.

Features

• 1" spout fits aircraft filler openings
• Automatic shutoff
• Hold-open clip for hands-free fueling
• Bonding wire attachment point
• Aluminum construction
• UL listed for aviation fuel

How It Works

The submersible turbine pump mounts inside the tank, eliminating the need for suction piping and above-ground pump placement. The pump is submerged in fuel, providing natural cooling and priming.

Advantages

• No external pump to protect from weather
• Self-priming - always ready
• Quiet operation
• Long service life (fuel-cooled motor)
• Available in various flow rates

Purpose

Prevents fuel from siphoning out of the tank through a broken or disconnected dispensing line. Required by code for aboveground tanks with remote dispensers.

How It Works

• Foot valve at pump discharge inside tank
• Opens only when pump is running
• Closes automatically when pump stops
• Prevents gravity siphon through broken lines

Overview

Facet aviation filters remove water and particulate from fuel before dispensing. Essential for delivering clean, dry fuel to aircraft.

Features

• Coalescing filter elements
• Water separation capability
• Differential pressure indicator
• Quick-open closure for element changes
• Aviation approved

Accepted Payment Methods

• Major credit cards (Visa, MC, Amex, Discover)
• Aviation fuel cards (AvCard, MultiService, UVair)
• Fleet cards (WEX, Voyager, Fuelman)
• Proprietary cards via fuel management system

How It Works

Dual stainless steel floats inside the tank rise and fall with fuel level, connected via cable to the clock-style dial for precise level indication.

Key Features

• Easy-to-read dial calibrated to tank
• Stainless steel floats
• No power required
• Weatherproof enclosure

How It Works

Activates at approximately 90% tank capacity during fuel delivery, providing an audible alert before the overfill prevention valve engages.

Key Features

• Activates at ~90% tank capacity
• Audible alarm
• Battery-operated - intrinsically safe
• Test/Cancel button

How It Works

Monitors the space between the inner and outer tank walls. Triggers an alarm if liquid is detected, indicating a leak in either wall.

Key Features

• Continuous monitoring
• Audible and visual alarm
• Battery backup
• Required for EPA/state compliance

How It Works

Float-activated valve that restricts flow at 95% capacity, giving time to shut off before overflow.

Key Features

• Activates at 95% capacity
• Restricts flow - does not stop completely
• Mechanical - no power required
• Required by NFPA 30/30A

Purpose

Emergency vents open during fire exposure to relieve internal pressure buildup, preventing tank rupture. Required on all aboveground fuel storage tanks.

Features

• Spring-loaded or fusible link activated
• Opens at set pressure threshold
• Sized for emergency venting capacity
• Required by UL 142/2085

Purpose

Allows the tank to breathe during normal filling and dispensing operations. May include pressure/vacuum settings to minimize vapor emissions.

What's Included

Every SmartTank system ships with a complete pre-wired electrical package. This is the hardest part of installing a fuel system - finding an electrician who understands fuel system wiring is difficult and expensive.

Components

• NEMA 4X control panel enclosure
• Motor starter with overload protection
• Service disconnect
• Emergency stop (mushroom head)
• Pump running indicator light
• All internal wiring complete
• Conduit stub-up drawings
