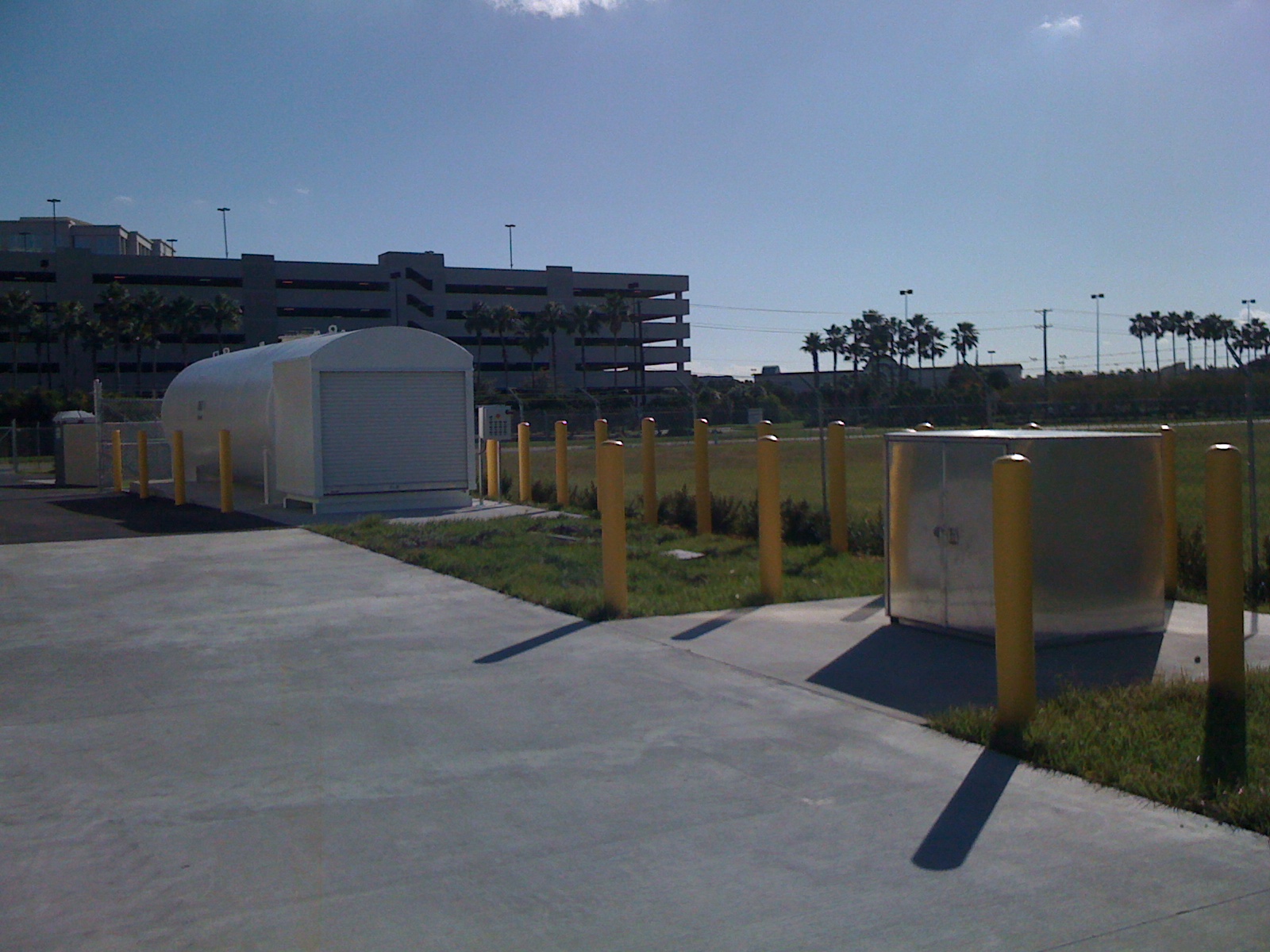

Private Jet Fuel System

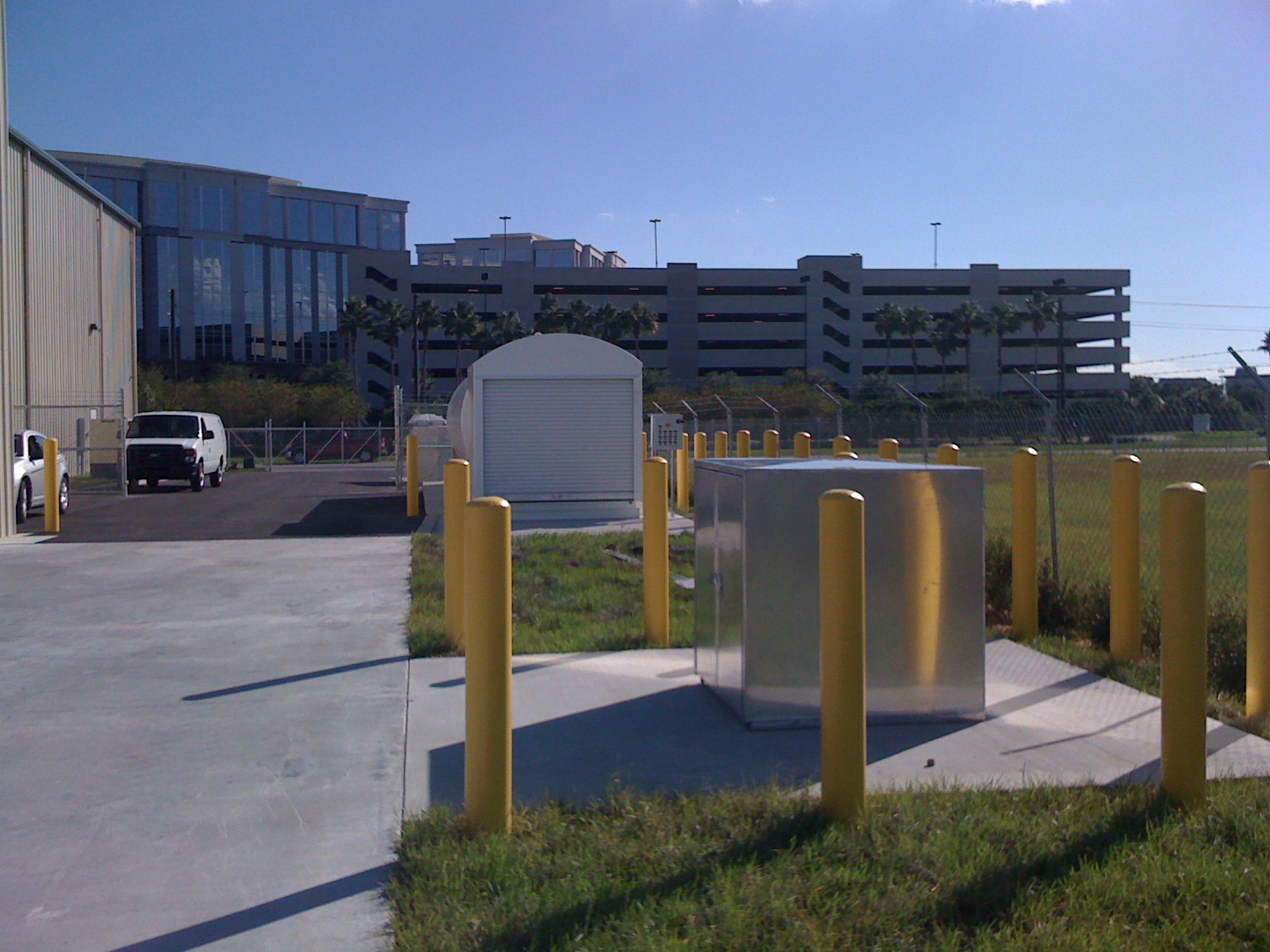

Why Sister Tanks?

ATA 103 requires fuel to settle for a minimum of 1 hour per foot of product height before dispensing. With two tanks, one can settle while the other is in service, providing continuous fuel availability.

How It Works

• Fuel delivered to Tank A
• Tank A settles while Tank B dispenses
• Valve switches when Tank B runs low
• Tank B receives next delivery
• Continuous operation without settling delays

Features

• 2-hour fire rating (2000°F)
• Lightweight thermal insulation
• Reduced setback requirements
• Ballistic and vehicle impact resistant
• Double-wall with interstitial monitoring

Purpose

Epoxy tank lining provides a smooth, non-reactive surface for Jet A storage. Prevents rust scale formation that could contaminate fuel and clog filters.

Features

• Epoxy coating compatible with Jet A
• Prevents internal corrosion
• Smooth surface reduces sediment buildup
• Standard for Jet A storage per ATA 103

Purpose

The inlet diffuser reduces turbulence during tank filling by spreading the incoming fuel flow. This minimizes disturbance to settled fuel and water at the tank bottom.

Features

• Reduces inlet velocity
• Spreads fuel flow laterally
• Minimizes sediment disturbance
• Required by ATA 103

Purpose

The floating suction draws fuel from just below the surface where it is cleanest. Water and sediment sink to the bottom; the floating suction stays above them.

Features

• Draws from cleanest fuel layer
• Avoids bottom water and sediment
• Flexible hose follows fuel level
• Required by ATA 103 for Jet A

Overview

The Blackmer GX3 is a sliding vane positive displacement pump providing consistent flow regardless of system pressure. Standard for aviation fuel systems requiring 240 GPM flow rates.

Features

• 240 GPM flow rate
• Sliding vane design
• Self-priming capability
• Consistent flow under varying pressure
• Field-serviceable

Purpose

Removes entrained air from the fuel stream before dispensing. Entrained air causes inaccurate meter readings and can be mistaken for water during quality checks.

Features

• Vortex design separates air from fuel
• Float-controlled air vent
• Ensures accurate metering
• Required for custody transfer

Features

• Positive displacement metering
• Digital register with totalizer
• Calibratable for accuracy
• Temperature compensation available
• Pulse output for fuel management

Overview

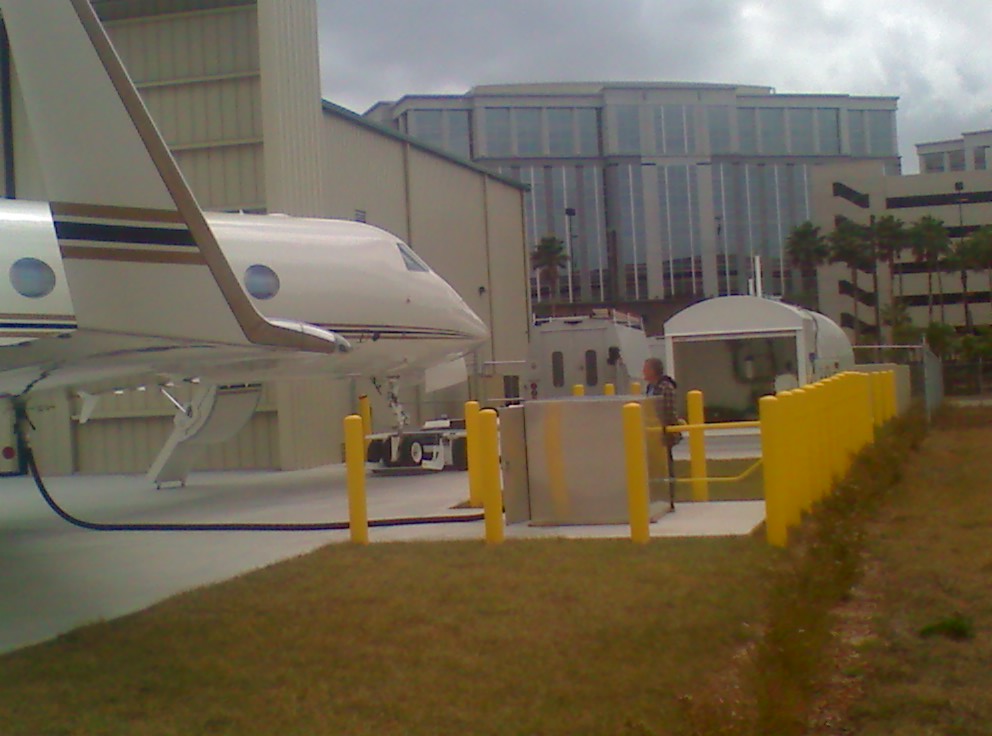

The remote dispenser cabinet is located at the fueling pad, away from the tank farm. Underground piping connects the tank farm to the cabinet for direct aircraft fueling.

Features

• 304 stainless steel enclosure
• Weather resistant
• Lockable access doors
• Hose reel mount
• Control panel integration

Features

• 1" spout for aircraft filler openings
• Automatic shutoff
• Hold-open clip
• Bonding wire attachment
• UL listed for aviation fuel

Features

• Easy-to-read dial
• Stainless steel floats
• No power required
• Weatherproof enclosure
• One per tank in sister configuration

Features

• Activates at ~90% capacity
• Audible alarm
• Battery-operated - intrinsically safe
• One per tank

Features

• Monitors space between tank walls
• Audible and visual alarm
• Battery backup
• Required for compliance

Features

• Activates at 95% capacity
• Restricts flow
• No power required
• Required by NFPA 30

Purpose

Opens during fire exposure to relieve internal pressure buildup, preventing tank rupture. Required on all aboveground fuel storage tanks.
