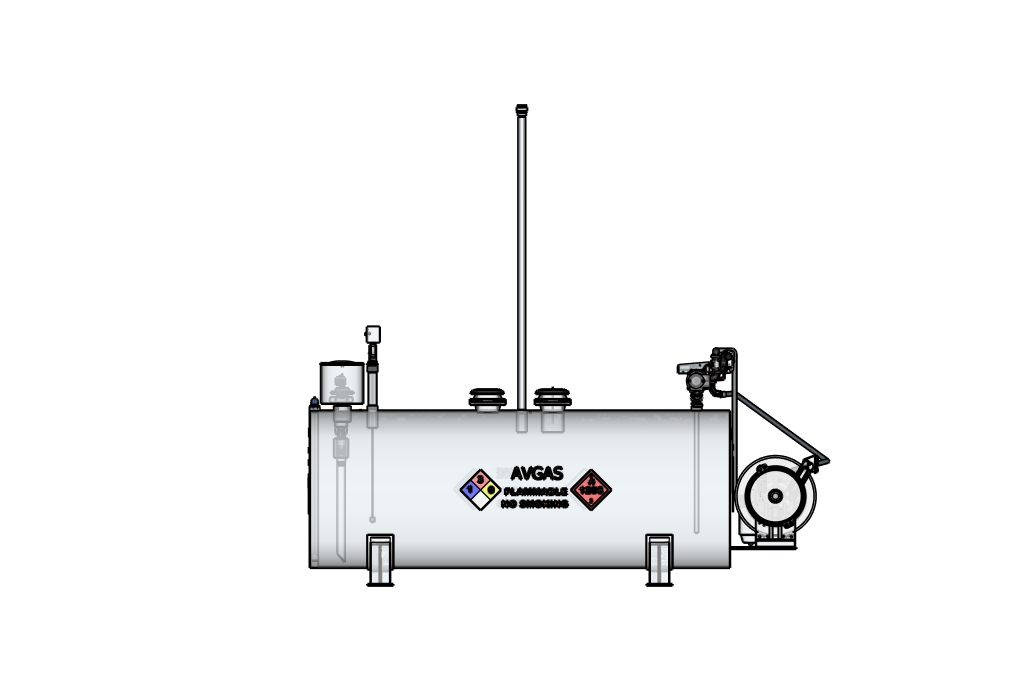

Flight School Avgas System

Construction

Primary steel tank surrounded by secondary steel containment shell. The interstitial space between walls is monitored for leaks, providing secondary containment without a separate containment structure.

Features

• Primary and secondary steel walls
• Interstitial leak monitoring
• 100% secondary containment
• Sandblasted and urethane painted
• Steel saddle supports included

Features

Heavy-duty spring rewind reel with 50 feet of aviation-certified fuel hose. Mounts on tank top for easy access and automatic retraction.

• 50' aviation certified fuel hose
• Spring rewind mechanism
• Adjustable tension
• Swivel joint prevents kinking
• Powder coated steel construction

Application

The OPW 295-SA is the standard overwing fueling nozzle for general aviation aircraft. The spout is sized to fit aircraft filler necks and includes a static bonding wire connection.

Features

• 1" spout fits aircraft filler openings
• Automatic shutoff
• Hold-open clip for hands-free fueling
• Bonding wire attachment point
• Aluminum construction
• UL listed for aviation fuel

How It Works

Dual stainless steel floats inside the tank rise and fall with fuel level, connected via cable to the clock-style dial. The dial reads in feet and inches for precise level indication.

Key Features

• Easy-to-read dial calibrated to tank dimensions
• Stainless steel floats - no cork to deteriorate
• Float-actuated mechanical design - no power required
• Weatherproof enclosure for outdoor installation

Purpose

Allows the tank to breathe during filling and dispensing operations while minimizing vapor emissions. Opens under slight pressure (during filling) or vacuum (during dispensing).

Features

• Spring-loaded pressure and vacuum pallets
• Reduces vapor emissions
• Weather hood prevents rain intrusion
• Flame arrester screen (optional)

How It Works

Monitors the space between the inner and outer tank walls. A float-activated switch triggers an alarm if liquid is detected in the interstitial space, indicating a leak in either wall.

Key Features

• Continuous monitoring of interstitial space
• Audible and visual alarm
• Battery backup for intrinsic safety
• Required for EPA/state compliance

How It Works

The high level alarm activates at approximately 90% tank capacity during fuel delivery, providing an audible alert to the delivery driver before the mechanical overfill prevention valve engages.

Key Features

• Activates at ~90% tank capacity
• Audible alarm alerts delivery driver
• Battery-operated - intrinsically safe
• Test/Cancel button for verification

How It Works

Float-activated valve mounted in the tank that restricts flow at 95% capacity, giving the delivery driver time to shut off the tanker pump before fuel overflows the tank.

Key Features

• Activates at 95% tank capacity
• Restricts flow - does not stop completely
• Mechanical operation - no power required
• Required by NFPA 30/30A
